How I Do It: Endoscopic Resection of Zenker’s Diverticulum

By Jay Bapaye, MD, Klaus Mönkemüller, MD, PhD, FASGE, FJGES

Virginia Tech Carilion School of Medicine, Virginia, USA

Zenker's diverticulum, also known as posterior pharyngeal pouch, is a pulsion diverticulum, resulting from posterior herniation of esophageal mucosa and submucosa into Killian's triangle, an area of least resistance situated above the upper esophageal sphincter (cricopharyngeal muscle) and below the inferior pharyngeal constrictor muscle (1-3).

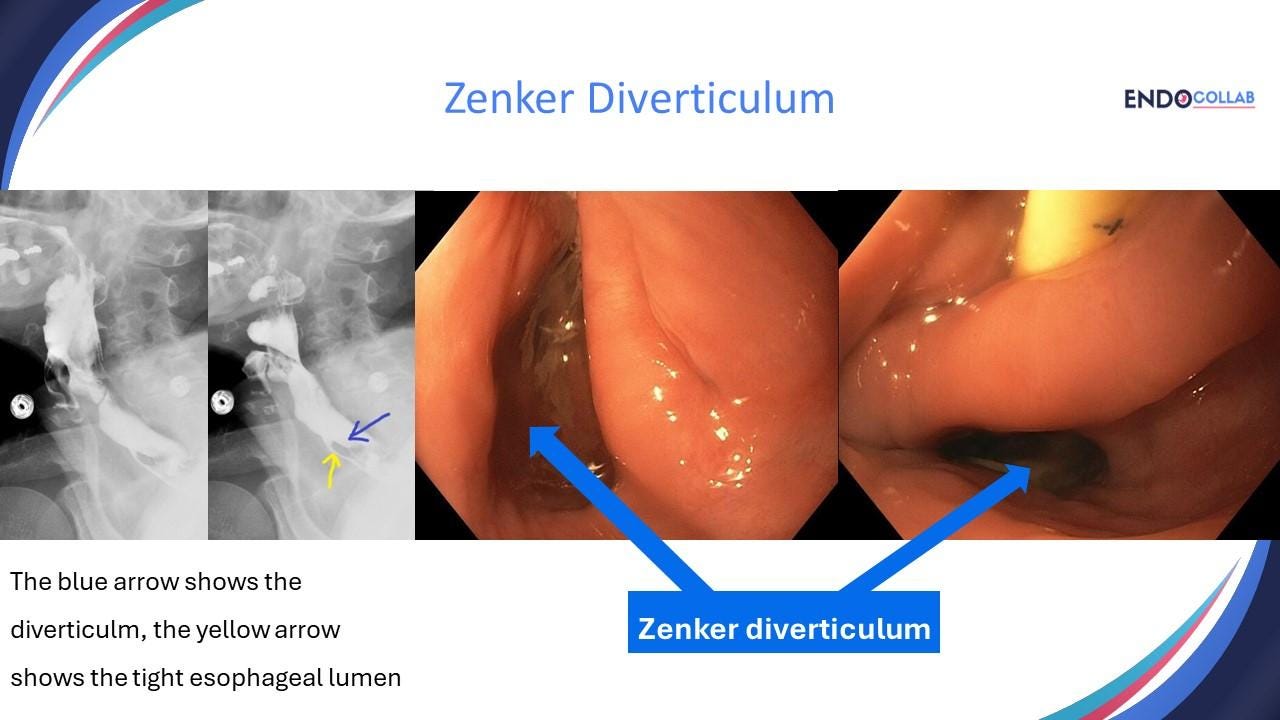

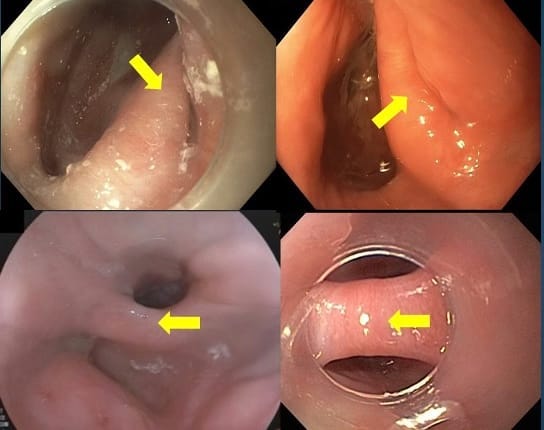

Figure 1. Spectrum of Zenker’s diverticulum. The yellow arrow points to the septum. Note that in some cases it is difficult to see the esophageal lumen, which appears as a “slid” (both upper photos).

Although open surgical techniques have historically been the criterion standard for treatment, endoscopic options have become increasingly used (3). Cricopharyngeal myotomy using flexible endoscopy is a safe and effective technique for the management of Zenker's diverticulum. Potential benefits of this approach include shorter operative times, shorter postoperative admissions, and earlier progression of diet (3).

The most common treatments for Zenker diverticulum are open surgical diverticulectomy with or without cricopharyngeal myotomy, rigid and flexible myotomy (1). The myotomy consist of incision of the “neck” of the diverticulum, starting with mucosa, then submucosa and, finally the muscle (“myotomy”).

There are many endoscopic approaches to “resect” a Zenker’s diverticulum. These include argon plasma coagulation (APC), incision with various types of needles (needle knife, hook knife, IT-knife), stapling device, endoscopic scissors, and so forth.

Although everyone talks about “resection”, this is not what is performed. Indeed, during flexible endoscopy the main approach “remove” the diverticulum is to perform a septotomy, incising the septum in between the diverticulum and esophagus, which contains the cricopharyngeal muscle. Indeed, the main goal of the treatment is to cut the cricopharyngeal muscle.

The myotomy consist of incision of the “neck” of the diverticulum, starting with mucosa, then submucosa and, finally the muscle (“myotomy”) (Figure 2). Figure 1 shows the septi of different Zenker diverticuli.

The essential aspects to perform an endoscopic resection are a) to have the tools, and b) follow specific steps (Figure 2).

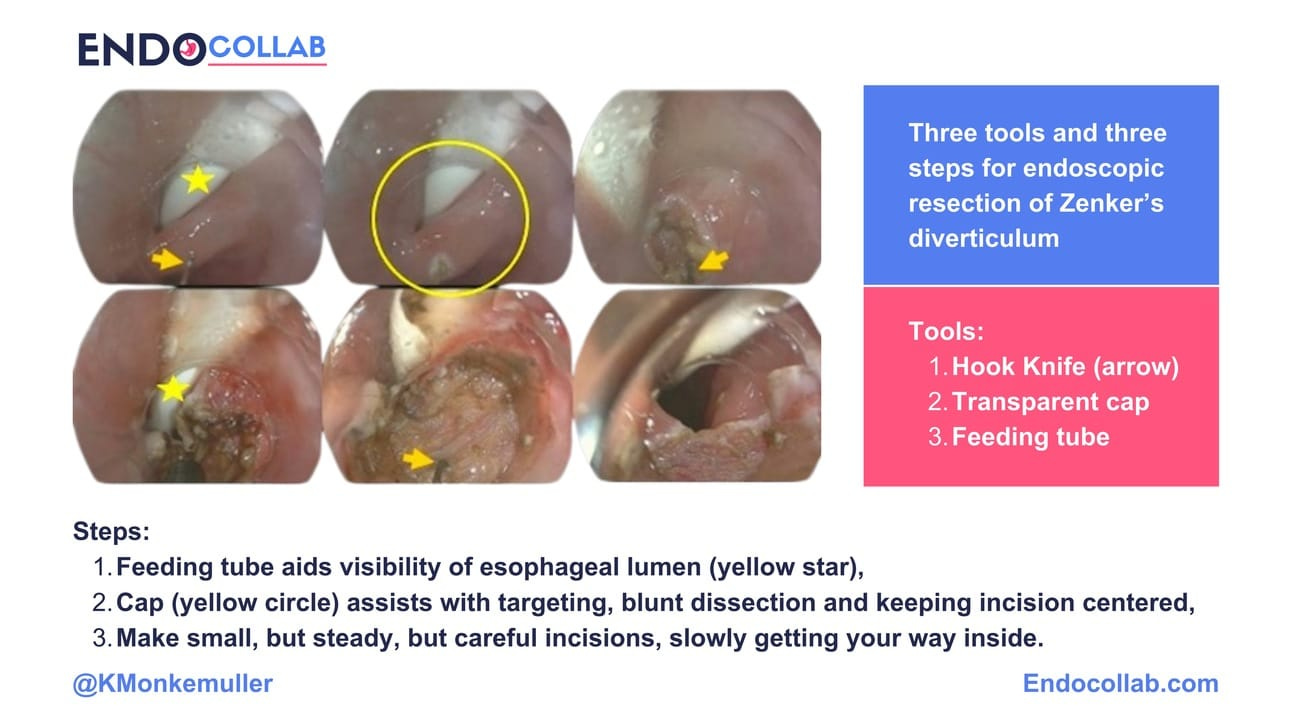

Figure 2. Zenker’s resection made easy using “the three tools and the three steps”.

The essential steps are:

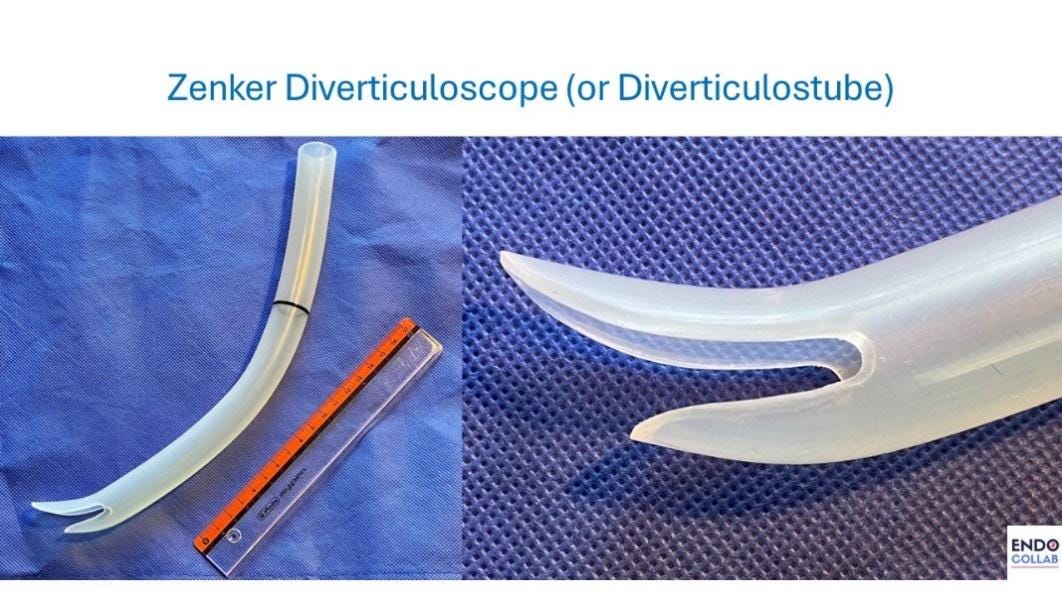

1.) Use a distal transparent cap on the endoscope (Figure 1 and Figure 2). The distal transparent cap stabilizes the endoscopic view, maintains a safe distance between the scope tip and the diverticular septum and allows for focused creating of the incisions using various devices. Additionally, the cap will allow for blunt dissection and, in case of bleeding, compression hemostasis. We have used the diverticuloscope in the past (Figure 3) but have found that it does not fit all Zenker diverticuli and thus use it only occasionally.

2.) Luminal vison: generally, the esophageal lumen and the diverticulum are clearly visible and distinct. However, more often than not, the septum is quite thick, and the esophageal lumen is barely visible (Figure 1). In this situation we like to place a wire (e.g. biliary guidewire) or a thin tube (e.g. Dobhoff or jejunal feeding tube) into the stomach, to maintain visibility of the esophagus and thus allow for controlled incision and dissection of the septum (Figure 2 and 4, panel D).

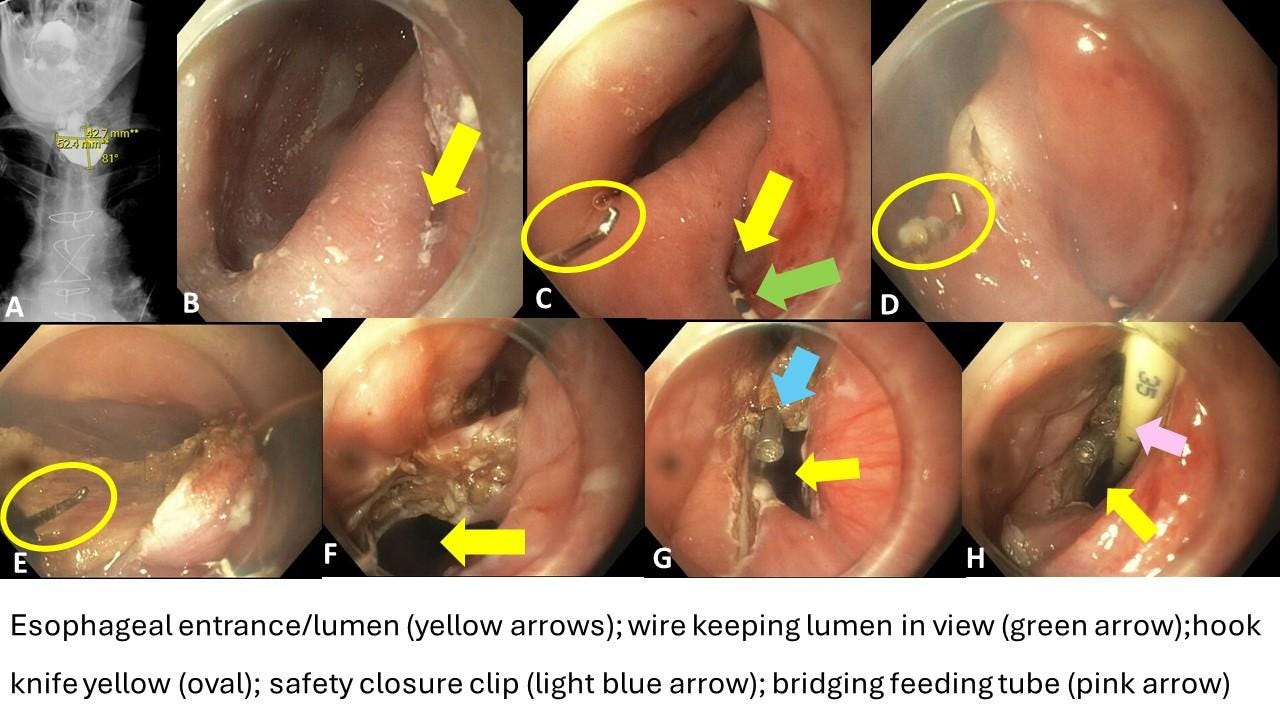

Figure 4. Endoscopic resection of Zenker’s diverticulum. The key steps to perform a safe septomyotomy in Zenker’s diverticulum are shown here.

3.) Incision and dissecting tool (utensil, device): Our preferred incision and dissection tool is the hook knife (Figure 4, yellow oval, panels C, D and E), as it permits hooking and cutting, as well as using the bend tip to dissect the muscle fibers one-by-one gradually and gently. A key aspect of septum dissection is to go step-by-step. First incise the mucosa, then the submucosa and lastly, muscle fibers, slowly, but steadily. Just below the cricopharyngeal muscle is a shiny, thin, film-like layer of the buccopharyngeal fascia which can be identified to ensure adequate myotomy.

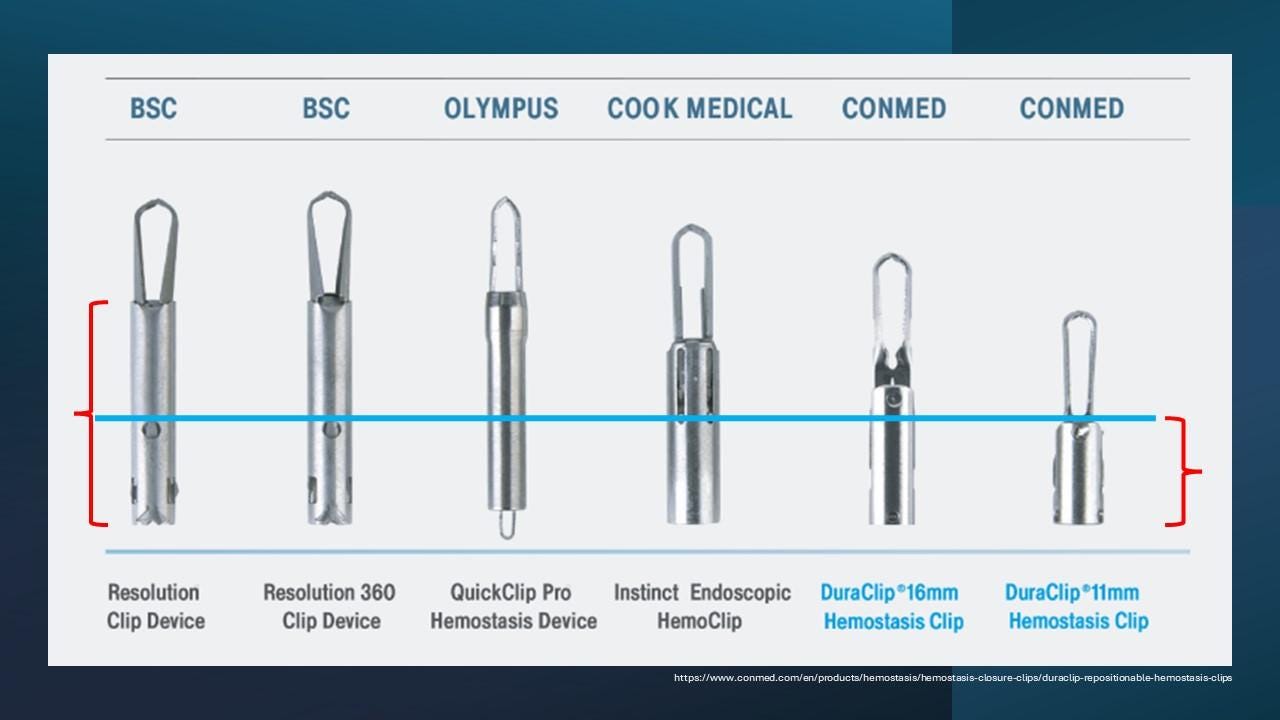

4.) Safety closure. Once we have dissected down to the base of the septum, we prefer to place a closing clip at the apex of the dissection, as this is the most vulnerable area for perforation (and subsequent mediastinitis). There are many clips available, but we prefer to use one with a short stem (e.g. DuraClip), as this diminishes the chances of touching and rubbing the contralateral wall (Figure 4G and Figure 5).

In sum, here we have presented a simple and safe endoscopic approach to resect Zenker’s diverticulum. This mini-review shows that there are a few essential steps and tools necessary to perform a Zenker’s resection, and these are modifiable, based on availability of tools and devices.

References:

1. Ferreira LE, Simmons DT, Baron TH. Zenker's diverticula: pathophysiology, clinical presentation, and flexible endoscopic management. Dis Esophagus. 2008;21(1):1-8.

2. Pescarus R., Shlomovitz E., Sharata A.M. Trans-oral cricomyotomy using a flexible endoscope: technique and clinical outcomes. Surg Endos. 2016;30:1784–1789.

3. Fan HS, Stavert B, Chan DL, Talbot ML. Management of Zenker's diverticulum using flexible endoscopy. VideoGIE. 2019 Jan 30;4(2):87-90. doi: 10.1016/j.vgie.2018.12.007. PMID: 30766952; PMCID: PMC6363821.

For more tips and tricks on diagnostic and therapeutic endoscopy visit endocollab.com

1. Clinical Approach to Dysphagia: A Practical Algorithm

2. Diagnosing Zenker's Diverticulum

3. Endoscopic Resection of Zenker‘s Diverticulum

4. Caps in GI Endoscopy - In this case of Zenker's diverticulum

5. Endoscopic resection of Zenker's diverticulum made easy, safe and practical

6. This esophageal diverticulum is located at about 30 cm from the incisors (teeth). What type of diverticulum could it be?

No COI by JB or KM with any of the companies/utensils or products mentioned in this article.
